Cable Management Support Systems

Cable Support Systems are well designed to provide necessary support for cable trays, cable ladders and trunkings. Cable supports are manufactured according to common standards from high quality raw materials.

Download Catalogue

Standards

  • IEC 61537:2023
  • NEMA VE-1:2017
  • NEMA VE-2:2023

Channel

UNITECH’s metal framing channel is cold formed on modern rolling machines from low carbon steel manufactured according to BS 6946:1988. A continuous slot provides the ability to make attachments at any point.

Lengths

  • Standard length: 3000mm with ± 3.2mm length tolerance.
  • Custom lengths are available upon request.

Finishes

Standard Finishes: Pre-Galvanized finish (ASTM A653M coating G90 and G60). Hot Dip Galvanized after fabrication (ASTM A123 or BSEN ISO1461:2009) . Other custom coatings are available upon request.



Selection Chart

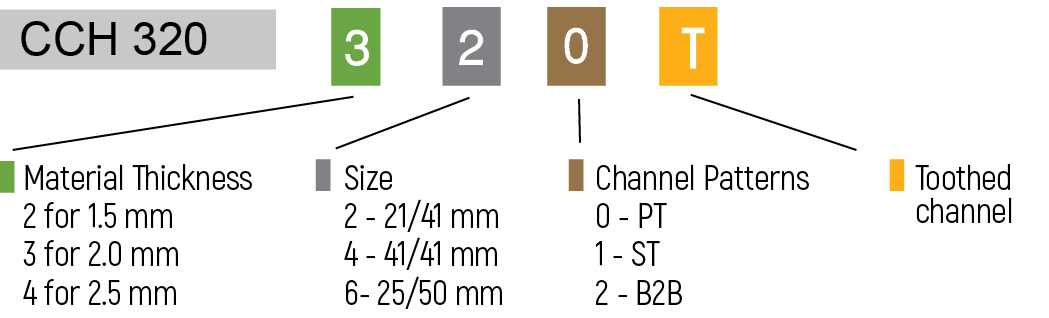

Part No Channel
Height “H” Width “W” Thickness
CCH - 220/221 21.0 mm 41.0 mm 1.5 mm
CCH - 240/241 41.0 mm 41.0 mm 1.5 mm
CCH - 260/261 25.0 mm 50.0 mm 1.5 mm
CCH - 320/321 21.0 mm 41.0 mm 2.0 mm
CCH - 340/341 41.0 mm 41.0 mm 2.0 mm
CCH - 360/361 25.0 mm 50.0 mm 2.0 mm
CCH - 420/421 21.0 mm 41.0 mm 2.5 mm
CCH - 440/441 41.0 mm 41.0 mm 2.5 mm
CCH - 460/461 25.0 mm 50.0 mm 2.5 mm

For Toothed Channel add "T" after the Part no. ex: CCH-220T

PT PLAIN TYPE
Part No Thick. mm. Height “H”
CCH-220 1.5 21
CCH-240 1.5 41
CCH-260 1.5 25
CCH-320 2 21
CCH-340 2 41
CCH-360 2 25
CCH-420 2.5 21
CCH-440 2.5 41
CCH-460 2.5 25
ST SLOTTED TYPE
Part No Thick. mm. Height “H”
CCH-221 1.5 21
CCH-241 1.5 41
CCH-261 1.5 25
CCH-321 2 21
CCH-341 2 41
CCH-361 2 25
CCH-421 2.5 21
CCH-441 2.5 41
CCH-461 2.5 25

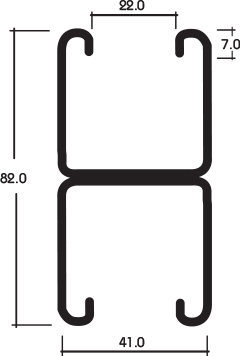

B2B TYPE
Part No Thick. mm. Height “H”
CCH-222 1.5 42
CCH-242 1.5 82
CCH-262 1.5 50
CCH-322 2 42
CCH-342 2 82
CCH-362 2 50
CCH-422 2.5 42
CCH-442 2.5 82
CCH-462 2.5 50

TOOTHED CHANNEL TYPE

For Toothed Channel add "T" after the Part no. ex: CCH-220T

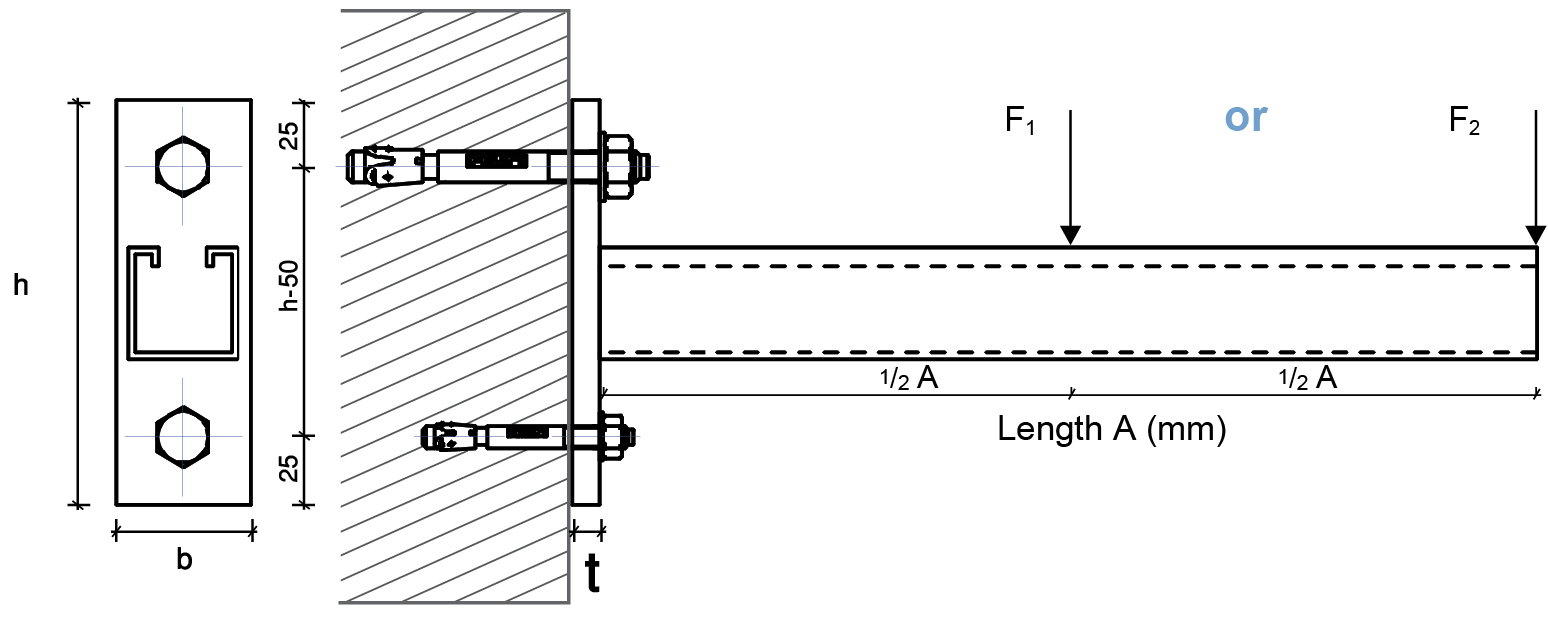

Cantilever Arm Brackets - SCA

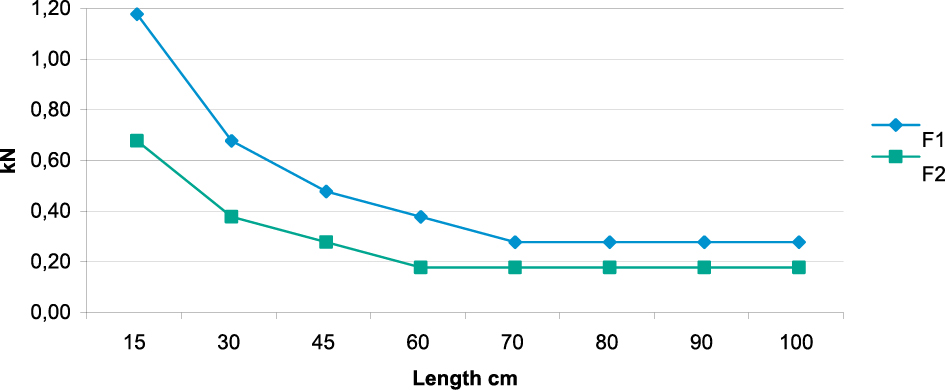

CCH421 41x21x2.5


Length (mm) Allowable Load
A (mm) F1* F2* Fz**
300 0.60 0.30 3.10
450 0.40 0.20 3.10
600 0.30 0.10 3.10
700 0.20 0.10 3.10
800 0.20 0.10 3.10
900 0.20 0.10 3.10
1000 0.20 0.10 3.10

Base plate : height 100 (h) x width 50 (b) x thickness 8 (t)

  • In the case of concrete support frame, use anchor M10.
  • In the case of concrete C-Channel frame, Hex bolt M8.
  • Connection force (pull-out force) : 3.10 (kN)

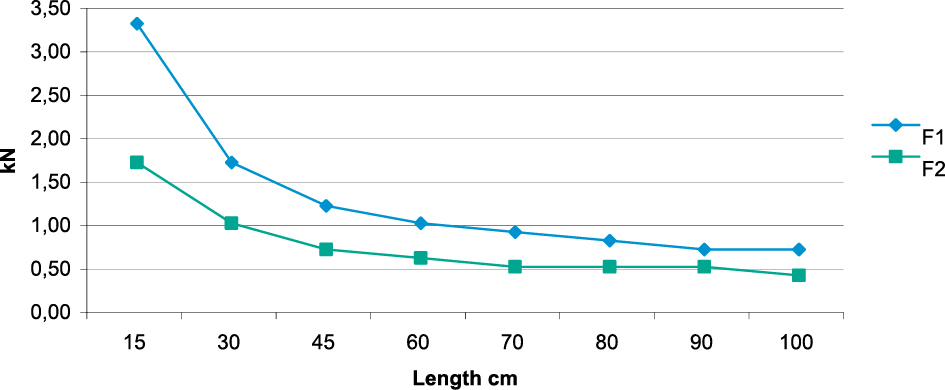

CCH421 41x41x2.5

Length (mm) Allowable Load
A (mm) F1* F2* Fz**
150 3.10 1.50 7.50
300 1.50 0.80 7.50
450 1.00 0.50 7.50
600 0.80 0.40 7.50
700 0.70 0.30 7.50
800 0.60 0.30 7.50
900 0.50 0.30 7.50
1000 0.50 0.20 7.50

Base plate : height 140 (h) x width 50 (b) x thickness 10 (t)

  • In the case of concrete support frame, use anchor M16.
  • In the case of concrete C-Channel frame, Hex bolt M8.
  • Connection force (pull-out force) : 7.50 (kN)

Given Loads are always in [kN] “ Allowable characteristic live load “

Cantilever Arm Brackets - SCA

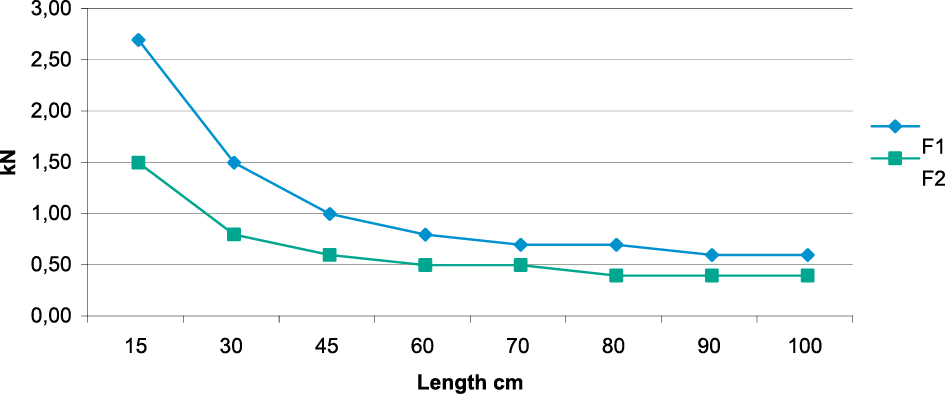

CCH422 41x21x2.5 B2B


Length (mm) Allowable Load
A (mm) F1* F2* Fz**
150 2.50 1.30 4.80
300 1.30 0.60 4.80
450 0.80 0.40 4.80
600 0.60 0.30 4.80
700 0.50 0.30 4.80
800 0.50 0.20 4.80
900 0.40 0.20 4.80
1000 0.40 0.20 4.80

Base plate : height 140 (h) x width 50 (b) x thickness 10 (t)

  • In the case of concrete support frame, use anchor M12.
  • In the case of concrete C-Channel frame, Hexbolt M8.
  • Connection force (pull-out force) : 4,8 (kN)

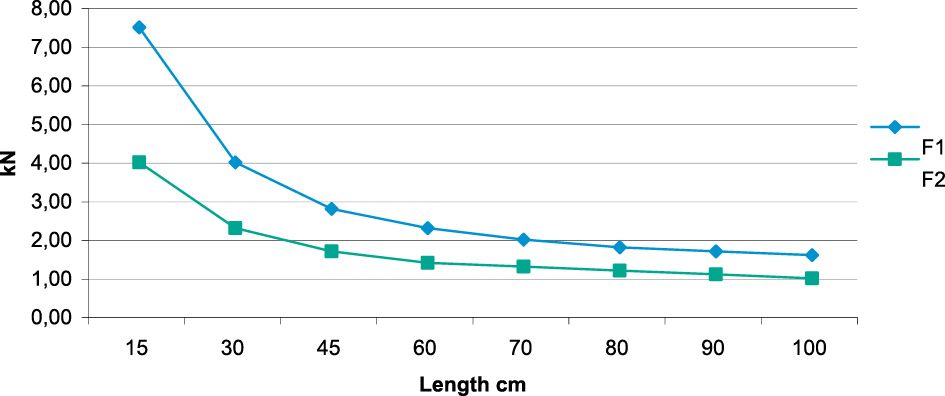

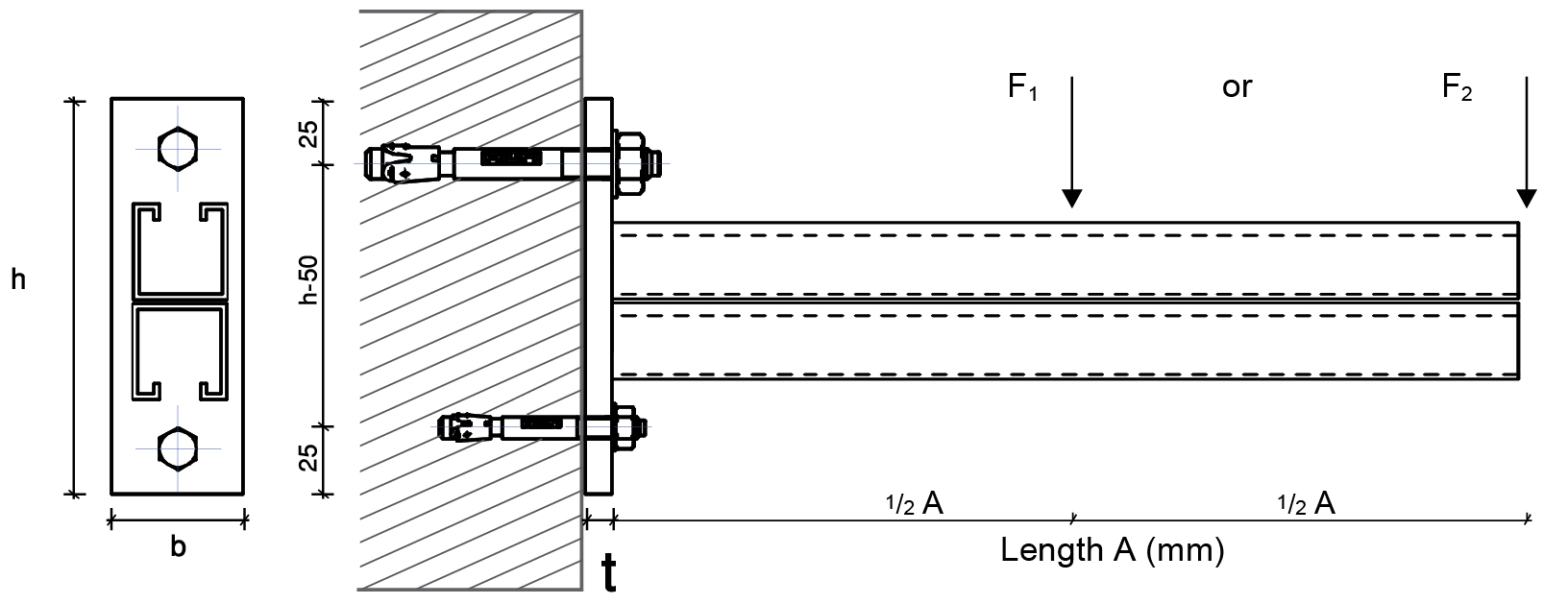

CCH442 41x41x2.5 B2B

Length (mm) Allowable Load
A (mm) F1* F2* Fz**
150 7.00 3.50 8.30
300 3.50 1.80 8.30
450 2.30 1.20 8.30
600 1.80 0.90 8.30
700 1.50 0.80 8.30
800 1.30 0.70 8.30
900 1.20 0.60 8.30
1000 1.10 0.50 8.30

Base plate : height 180 (h) x width 60 (b) x thickness 12 (t)

  • In the case of concrete support frame, use anchor M16.
  • In the case of concrete C-Channel frame, Hex bolt M10.
  • Connection force (pull-out force) : 8,30 (kN)

Given Loads are always in [kN] “ Allowable characteristic live load “


U-SUPPORT
I-SUPPORT
WALL BRACKET
