Cable Trays and Accessories

Cable Trays are designed to meet most requirements of cable and electrical wire installations and comply to local and international standards of fabrications and finishes.

Download Catalogue

Standards

  • IEC 61537:2023
  • NEMA VE-1:2017
  • NEMA VE-2:2023

Types Overview and Components

SFSP cable trays and accessories from SFSP are manufactured from steel sheets in accordance with BS EN 10130/BS EN 10131/ BS EN 10051, complying with BS EN 61537:2023, and NEMA standards, and as per cabling standards CENELEC EN 50173-1; EIA/ITA 568 A; ISO/IEC 11801-1:2017. SFSP manufactures a wide range of products capable of providing the characteristics which respond to the proposed application, along with quality of assembly, speed of installation, and cost-saving cable trays.

Materials

Pre-Galvanized, Hot-Dip Galvanized, Stainless Steel and Aluminium.

Material Thickness

1.0 mm | 1.20 mm | 1.50 mm | 2.00 mm

Light Duty - LCT - 100

Thickness: 1.00 mm | Side Height: 50 mm | Length: 2440 mm / 3000 mm | Width: 50 - 1000 mm

Medium Duty - MCT - 120

Thickness: 1.20 mm | Side Height: 50 ,75 and 100 mm | Length: 2440 mm / 3000 mm | Width: 50 - 1000 mm

Heavy Duty - HCT - 150

Thickness: 1.50 mm | Side Height: 50 ,75 and 100 mm | Length: 2440 mm / 3000 mm | Width: 50 - 1000 mm

Very Heavy Duty - VCT - 200

Thickness: 2.00 mm | Side Height: 50 ,75 and 100 mm | Length: 2440 mm / 3000 mm | Width: 50 - 1000 mm

Types of Side Heights
Cable Trays Types

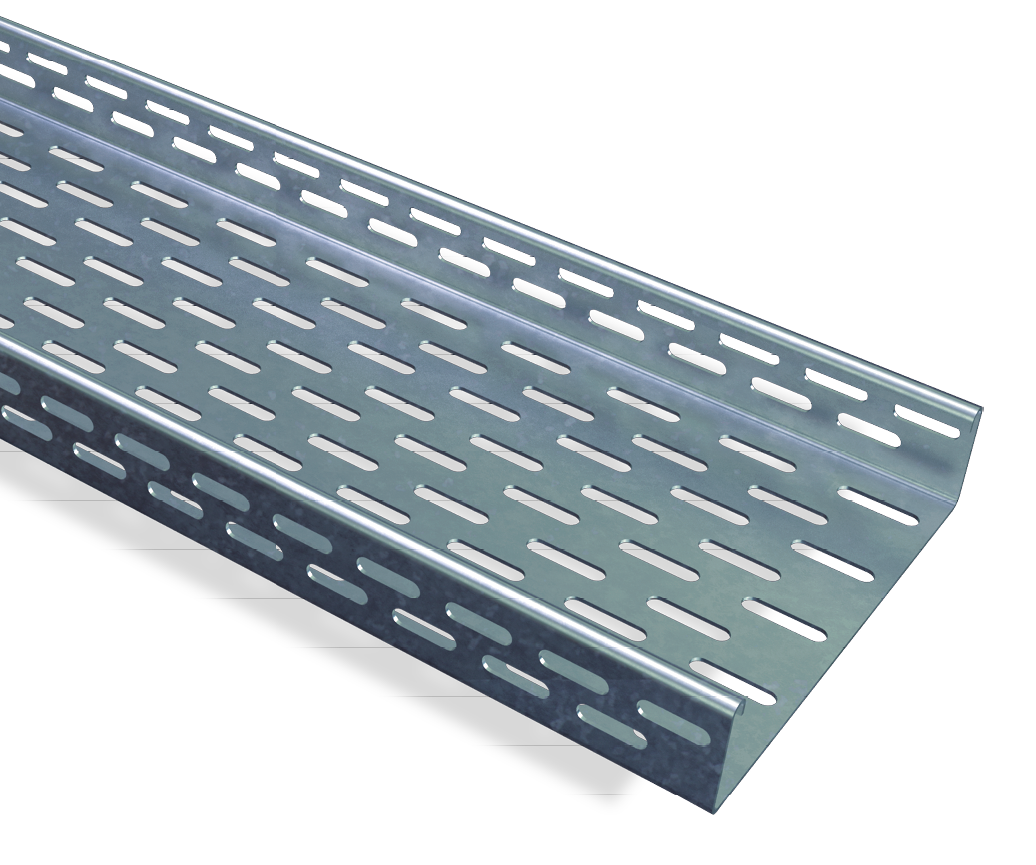

Side Height 50 mm

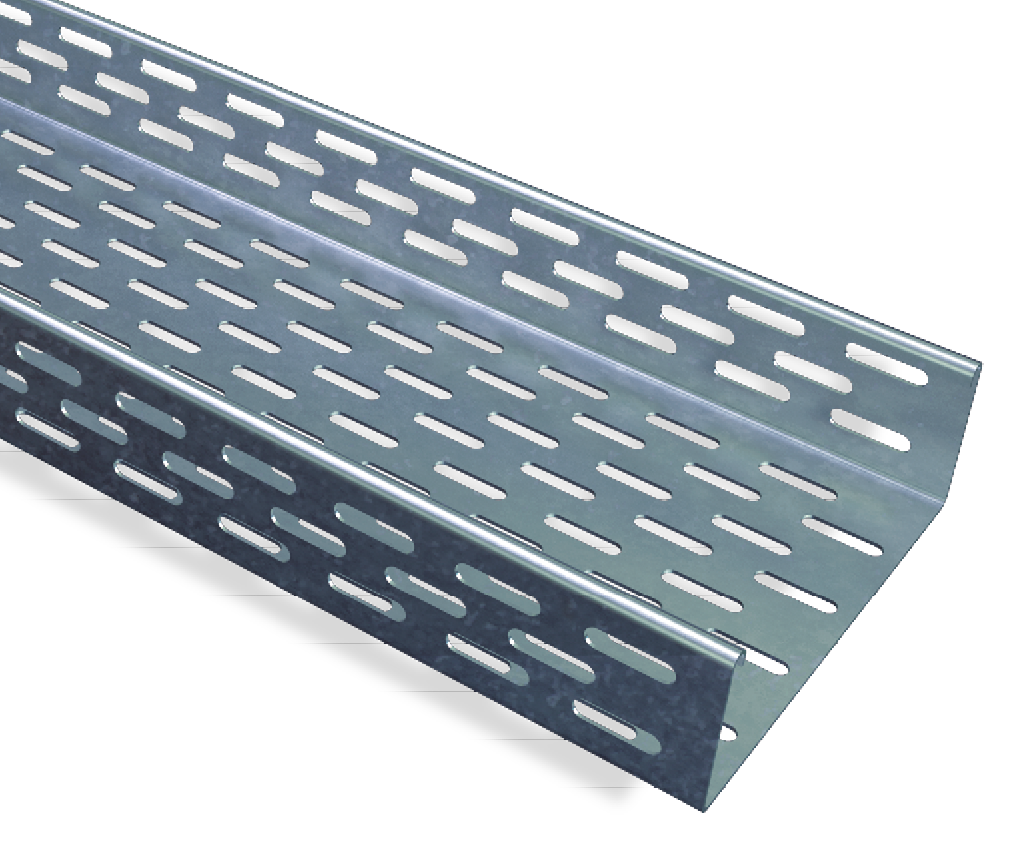

Side Height 75 mm

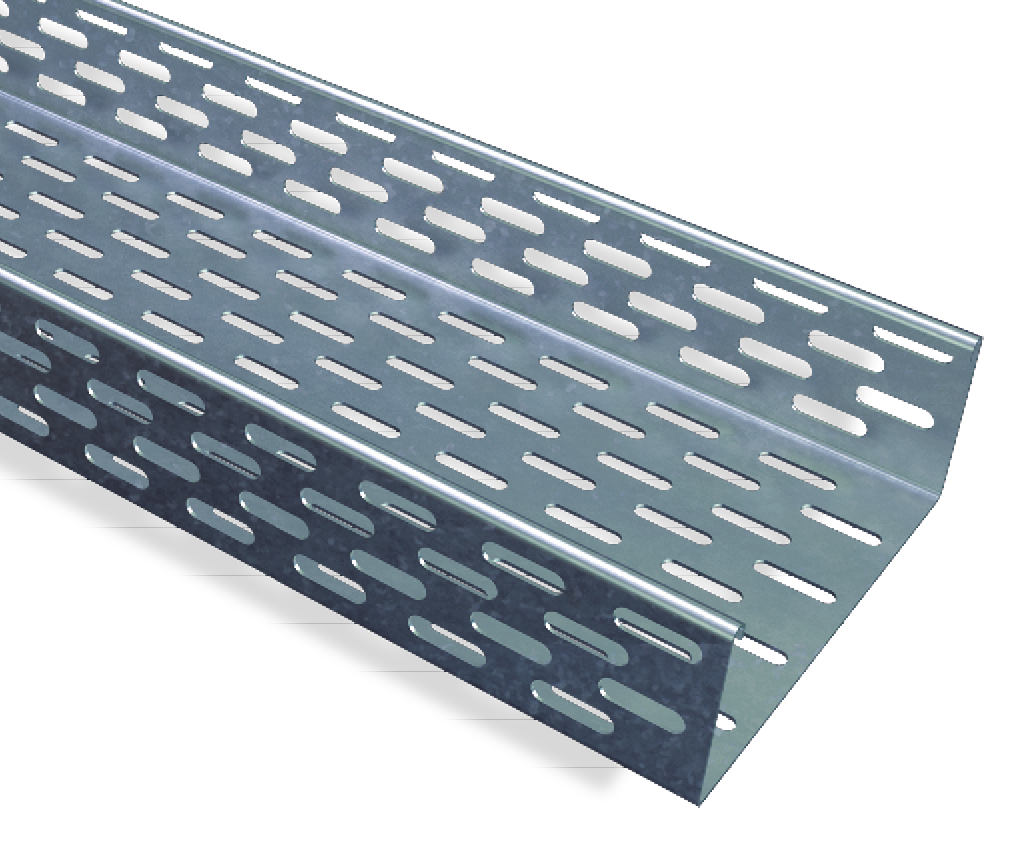

Side Height 100 mm
Bend 45°

bend 45
Bend 90°

bend 90
Intersection

intersection
Outside Riser Bend 45°

bend 45
Inside Riser Bend 45°

bend 90
Outside Riser Bend 90°

intersection
Inside Riser Bend 90°

bend 45
Reducer

bend 90
Tee Branch

intersection
